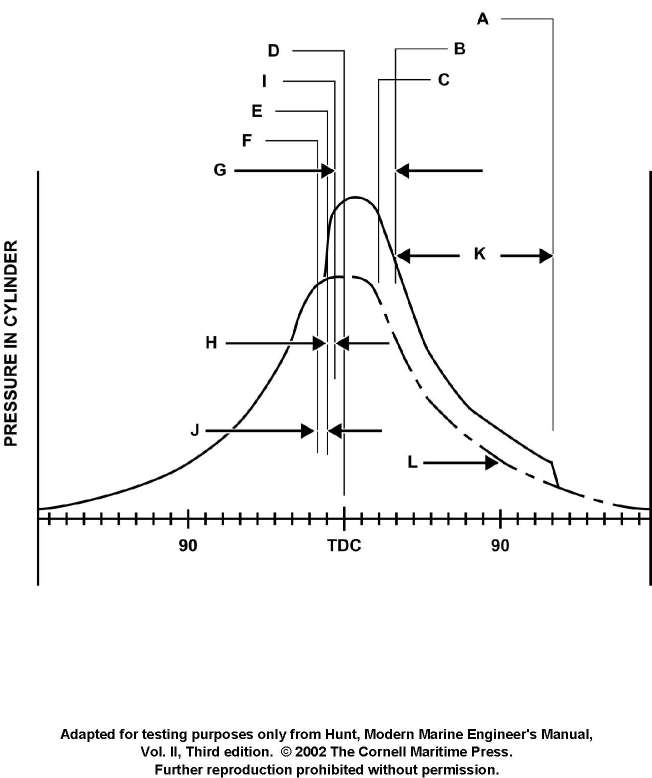

Which area of the indicator diagram illustrated, indicates the ignition delay period in a diesel engine cylinder? Illustration MO-0033

Correct Answer: Option C — J

Ignition delay represents the interval between initial fuel injection and the start of combustion. On standard diesel indicator diagrams, point J highlights this precise delay period prior to rapid pressure rise.
