Marine Electrical Systems USCG Q#902 (Set 31)

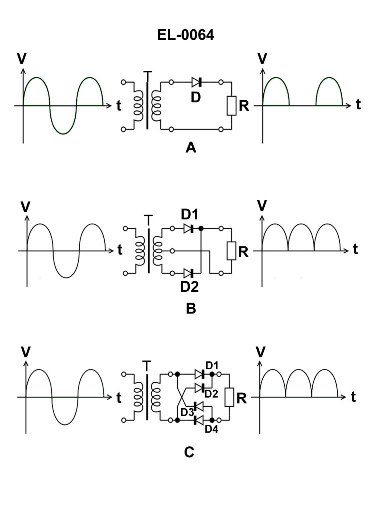

What is the name for the device shown in figure "A" of the illustration? Illustration EL-0064

USCG Exam Illustration EL-0064 — USCG Examination Diagram: **Illustration EL-0064**

Official USCG Answer & Rule Citation

Correct Answer: Option C — half wave rectifier

Figure A illustrates a single diode configured for half-wave rectification, passing only one half-cycle of the alternating current input to yield a pulsating direct current output.
