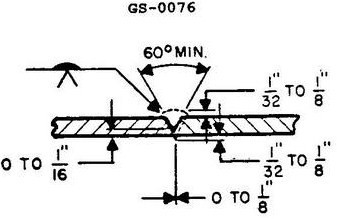

The welding symbol reference line using the inverted "V” indicates __________. Illustration GS-0076

Correct Answer: Option D — a "V" groove weld is to be made

In AWS welding symbology, the inverted V symbol placed on the reference line denotes a V-groove weld. This indicates the joint preparation required to ensure proper penetration and fusion between the two base metal components being joined during the welding process.
