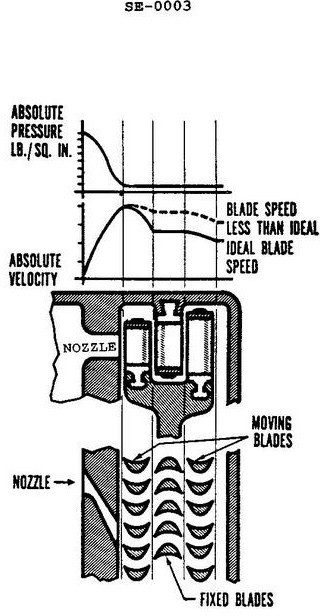

The type of turbine shown in the illustration is classified as a __________. Illustration SE-0003

Correct Answer: Option B — velocity-compounded impulse

A single set of nozzles followed by multiple rows of moving blades with intermediate reversing rows constitutes a velocity-compounded Curtis stage. This configuration extracts maximum kinetic energy drop in a single pressure stage, typical of marine high-pressure turbine governing stages.
