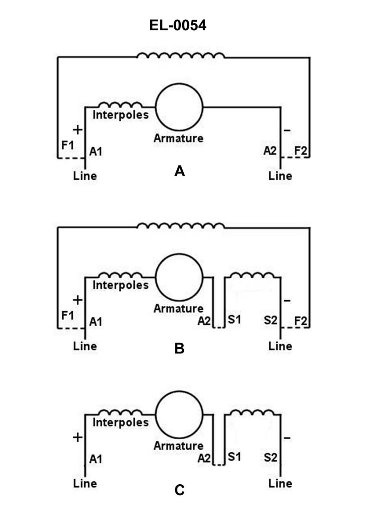

The electrical diagram shown in figure B of the illustration represents what type of DC motor? Illustration EL-0054

Correct Answer: Option C — compound-wound DC motor

Figure B displays both series and shunt field windings interacting with the armature, defining a compound-wound DC motor. This configuration provides high starting torque and stable speed characteristics under varying marine loads.
