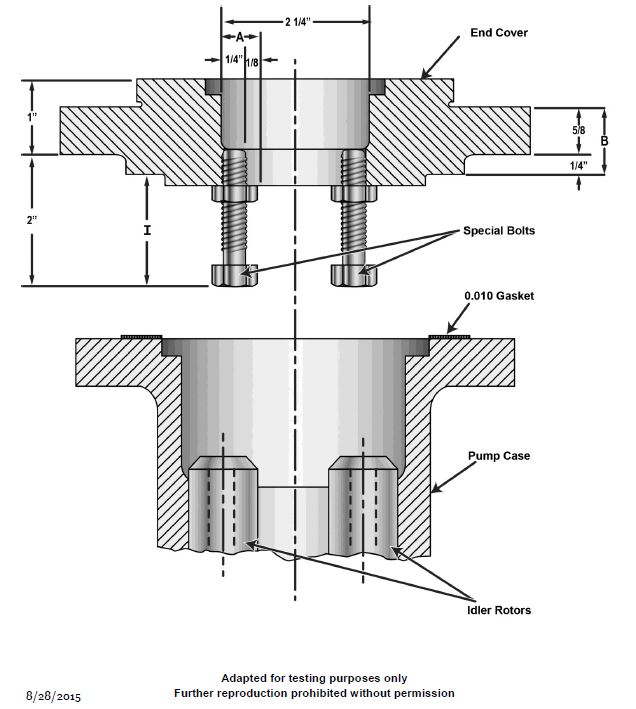

In the illustration shown, what is the distance indicated by dimension "I"? Illustration GS-0001
Official USCG Answer & Rule Citation
Correct Answer: Option B — 1 3/4 inches
Blueprint reading requires precise measurement of the provided scale. By analyzing the reference dimensions provided in the illustration GS-0001, the distance indicated by dimension 'I' corresponds to 1 3/4 inches. This is a standard interpretation of mechanical drawing dimensions used in maritime engineering and component fabrication documentation.
