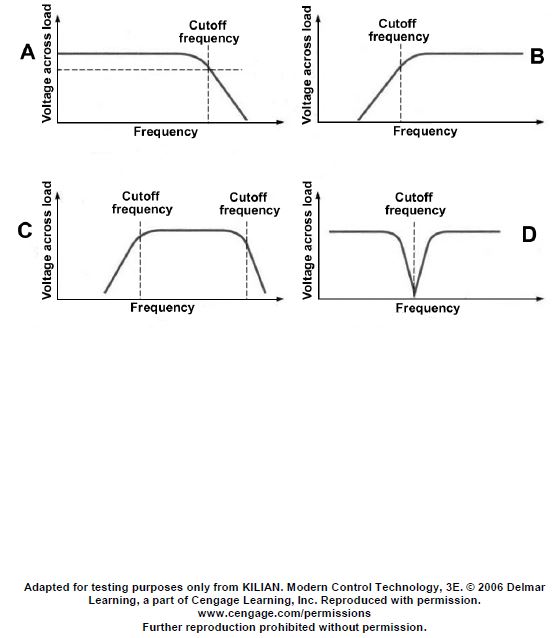

In referring to the graphs shown in the illustration, which of the following figures represents a band pass filter? EL-0076

USCG Exam Illustration EL-0076 — USCG Examination Diagram: **Illustration EL-0076**

Official USCG Answer & Rule Citation

Correct Answer: Option C — C

Curve C illustrates a band-pass filter response curve, which permits a specific range of frequencies to pass while attenuating signals above and below that designated frequency band.
