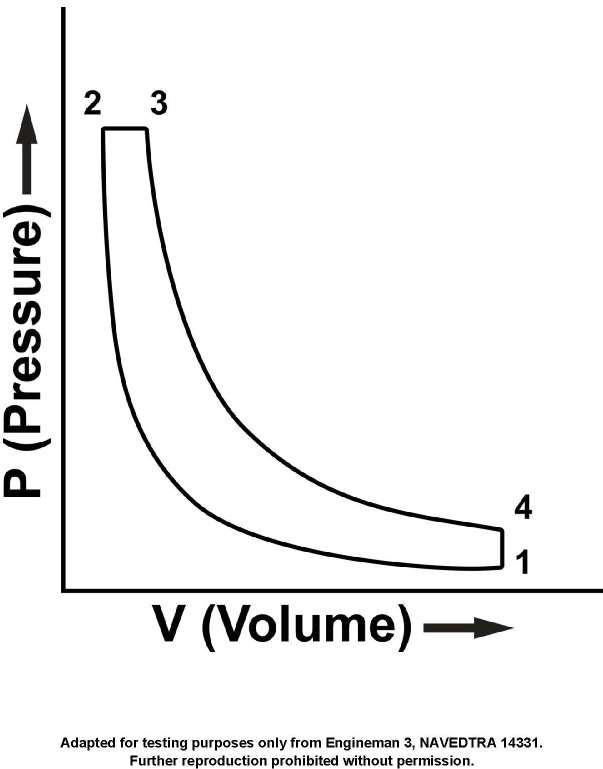

If point #1 in the diagram shown is the beginning of gas compression, which of the cycles listed is being illustrated? Illustration MO-0036

Correct Answer: Option B — Diesel

A true theoretical Diesel cycle diagram features an adiabatic compression curve beginning at point one, followed by fuel introduction causing isobaric heat addition at constant pressure before adiabatic expansion.
