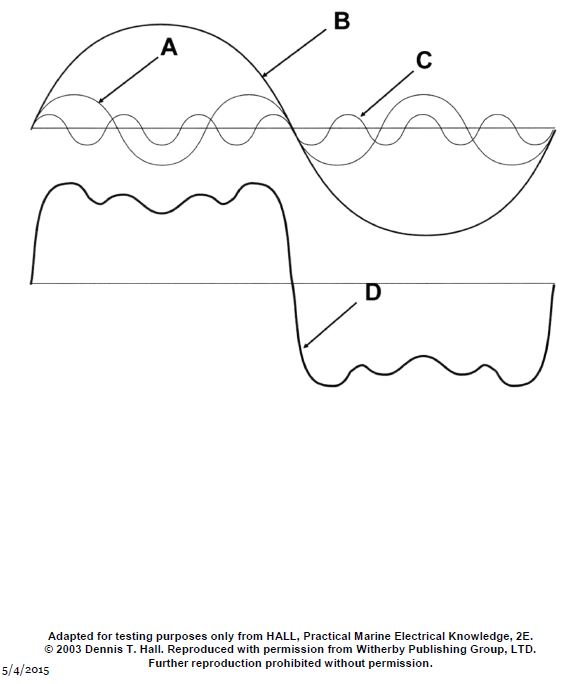

As shown in the illustrated harmonic analysis diagram, which figure represents the fundamental (or first harmonic)? EL-0163

Correct Answer: Option B — B

The fundamental frequency, or first harmonic, is the primary sinusoidal component possessing the lowest frequency and largest amplitude in a complex periodic waveform. Harmonic analysis diagrams isolate this base frequency, which dictates the synchronous operating speed of shipboard alternating current generators.
