Safe Isolation Before Overhauling a Pump on a Ship: Step-by-Step Engineering Safety Procedure

A shipboard engine room is a dense, high-energy industrial environment where fluid systems operate continuously under severe pressures, elevated temperatures, and automated remote control. Overhauling a marine centrifugal, screw, or gear pump—whether it handles high-pressure boiler feed water, scalding Heavy Fuel Oil (HFO), toxic chemicals, or corrosive sea water below the vessel's waterline—represents one of the highest-risk maintenance evolutions an engineer can undertake.

Failing to establish a positive zero-energy state before dismantling a pump can trigger catastrophic casualties: arc flash burns, limb amputation from unexpected automated startup, fatal scalding from pressurized steam/thermal oil, toxic hydrocarbon inhalation, or catastrophic engine room flooding. This standard operating procedure (SOP) details the step-by-step engineering protocols required to achieve comprehensive mechanical, electrical, and hydraulic isolation in full compliance with the International Safety Management (ISM) Code, SOLAS conventions, and the Code of Safe Working Practices for Merchant Seafarers (COSWP).

Statutory & International Regulatory Governance

Every isolation procedure executed aboard commercial merchant vessels must conform to strict statutory frameworks enforced by Flag State administrations, Classification Societies (e.g., DNV, Lloyd’s Register, ABS, IRS), and Port State Control (PSC) inspectors:

• ISM Code (Section 7 – Development of Plans for Shipboard Operations): Mandates that shipping companies identify key shipboard operations concerning safety and pollution prevention. Clear, written checklists, risk assessments, and formal Permits to Work (PTW) must be executed prior to opening any pressurized machinery or high-voltage circuit.
• SOLAS Chapter II-1 (Regulation 26 & 40): Governs the safe operation and arrangement of machinery, boilers, and electrical installations. Mandates fail-safe isolations to ensure vital services remain operable during casualties.
• SOLAS Chapter II-2 (Regulation 4.2.2.5 – Oil Fuel Arrangements): Imposes strict controls on oil piping systems, demanding that fuel lines be properly isolated, drained, and shielded to eliminate any risk of flammable spray contacting hot engine surfaces (exhaust manifolds, turbochargers) where ignition could cause major engine room fires.
• Code of Safe Working Practices for Merchant Seafarers (COSWP):
  • Chapter 14 (Permit to Work Systems): Establishes statutory requirements for Work Permits, Electrical Isolation Certificates, and pre-task safety briefings.
  • Chapter 16 (General Safety in Machinery Spaces): Outlines physical Lockout/Tagout (LOTO) requirements, personal safety gear, and mechanical isolation procedures.

Phase 1: Pre-Maintenance Planning, Risk Assessment & Work Permits

Safe isolation begins long before a wrench touches a bolt. Proper administrative authorization and situational awareness prevent uncoordinated actions across the watchkeeping team.

1. Dynamic Risk Assessment & Toolbox Talk (TBT)

The Second Engineer and the designated maintenance team (Engineer Officer, Electro-Technical Officer / ETO, and Engine Room Motorman) must gather at the job site for a formal Toolbox Talk. The team evaluates:

• Nature of Fluid: Toxicity, temperature, flammability, and hazardous vapor generation (e.g., HFO at 135°C, cargo stripper fluids, boiler water at 180°C/60 bar, or seawater below the ship’s loaded waterline).
• Stored Energy Vectors: Hydraulic pressure, gravitational head from elevated expansion/service tanks, electrical supply (440V 3-phase and 24V/110V control circuits), and mechanical spring tension.
• Environmental Hazards: Slippery deck plates, proximity to running machinery, inadequate lighting, and escape route obstructions.

2. Permit to Work (PTW) Authorization

• Machinery Maintenance Permit: Formally authorized and signed by the Chief Engineer or Second Engineer.
• Electrical Isolation Certificate: Completed and signed by the certified Electrical Officer (ETO) or Second Engineer detailing specific breakers, isolators, and fuses removed.
• Enclosed Space Entry / Hot Work Permit (if applicable): Executed if the pump is located in a cofferdam, pump room, or duct keel, or if heating torches are required for stubborn impeller keys.

3. Operational Notification & Watch Logging

• Bridge Notification: Inform the Officer of the Watch (OOW) on the navigation bridge if taking the pump out of service affects propulsion power, steering response, ballasting, or vessel stability.
• Engine Control Room (ECR) Logging: The Duty Engineer logs the exact time of isolation, equipment status, and tag numbers in the official Engine Room Log Book.

Phase 2: Operational De-selection & Automation Disablement

Modern ships utilize sophisticated Power Management Systems (PMS), Distributed Control Systems (DCS), and Alarm and Monitoring Systems (AMS) designed to automatically start standby auxiliary machinery upon sensing a drop in line pressure or prime mover temperature. If an engineer mechanically closes a valve without deselecting automation, the standby pump will start automatically, or the pump being overhauled may attempt an auto-restart.

1. Deselect Automatic / Standby Mode: In the ECR operator console and on local automation touchscreens, change the pump's operational state from "AUTO / STANDBY" to "MANUAL / OFF".
2. Inhibit Standby Cut-In Logic: Inhibit the auto-start interlock loop so that pressure dips created during isolation do not inadvertently trigger emergency alarms or start auxiliary support pumps.
3. Deselect Duty Priority: If the ship utilizes duty/standby auto-cycling (e.g., Main Sea Water cooling pumps #1 and #2), ensure the running partner pump is confirmed running healthy and designated as sole duty consumer before isolating the unit.
4. Inhibit Remote Commands: Lock out remote start commands originating from the Cargo Control Room (CCR), Navigation Bridge, or local firefighting remote panels.

Phase 3: Electrical Isolation Protocol (Lockout / Tagout – LOTO)

Electrical isolation eliminates electrocution hazards, arc blast injuries, and catastrophic motor re-energization while an engineer's hands are inside the pump casing.

1. Main Switchboard (MSB) / Motor Control Centre (MCC) Isolation

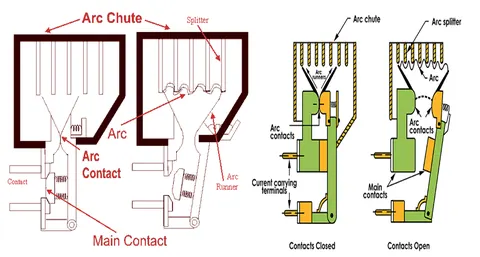

• Open (Trip) the Circuit Breaker: Trip the dedicated 440V (or 6.6kV high voltage) circuit breaker at the MCC panel.
• Rack Out the Breaker: For draw-out type breakers, rack the unit out to the "DISCONNECTED / ISOLATED" position. Verify that the safety shutters drop over the live switchboard busbar stabs.
• Local Starter Panel Isolator: Turn the local emergency isolator rotary switch on the starter cubicle to the "OFF" position.

2. Pulling Control Circuit Fuses

Opening the main 440V breaker does not necessarily de-energize internal control circuits. Auxiliary contacts, space heaters, and PLC automation loops often supply external 24V DC, 110V AC, or 220V AC into the motor starter box. Remove the auxiliary control circuit fuses to completely isolate control and sensing loops.

3. Padlocking (Lockout)

Fit a physical safety padlock through the breaker rack-out locking hasp or isolator handle switch. Rule of Unique Possession: The key to this padlock must remain solely in the personal possession of the engineer performing the pump overhaul until the task is complete. Master keys or shared key boxes are strictly prohibited under maritime safety standards.

4. Displaying Warning Notices (Tagout)

Affix standardized, durable, high-visibility "DANGER: MEN AT WORK – DO NOT ENERGIZE" tags at three mandatory locations:

1. On the circuit breaker handle / cubicle door at the MCC.
2. On the local starter box push-button panel adjacent to the pump.
3. On the mimic screen / control station in the Engine Control Room.

5. Zero Electrical Energy Verification ("Live-Dead-Live" Test)

Never assume an electrical circuit is dead simply because a breaker handle is down. Always execute the Live-Dead-Live procedure before opening the motor terminal box:

1. Check Tester on Known Live Source: Test a calibrated multimeter or approved two-pole voltage detector on an active live supply to confirm instrument operation.
2. Test Target Terminals: Measure across all phases ($U-V, V-W, W-U$) and between each individual phase and the vessel's hull earth ($U-\text{Earth}, V-\text{Earth}, W-\text{Earth}$) at the motor terminal box. Confirm $0.0\text{ Volts}$.
3. Re-Verify Tester on Live Source: Immediately re-test the multimeter on the known live source to verify the instrument didn't blow an internal fuse or suffer battery failure during the test.

Phase 4: Mechanical & Fluid Isolation (Piping System)

Mechanical isolation separates the pump from the fluid energy stored in connected pipelines, headers, expansion tanks, and sea chests.

1. Valve Closure Sequence

• Suction Valve: Firmly shut the pump suction isolating valve.
• Discharge Valve: Firmly shut the high-pressure discharge isolating valve. Check that the non-return (check) valve flapper is seated.
• Instrumentation Lines: Close the isolating cocks for suction and discharge pressure gauges, differential pressure transmitters, and temperature sensors. Trapped fluid in gauge lines can spray under high pressure if un-isolated.
• Auxiliary Supply Lines: Shut off gland flushing lines, mechanical seal cooling water lines, casing recirculation lines, and air release lines.
• Steam Tracing (for HFO / Thermal Oil Pumps): Shut and lock the steam or thermal oil heating tracing valves to prevent severe burn hazards and casing reheating during work.

2. Securing Valve Handwheels (Locking & Tagging)

Chain or wire-lock the handwheels of both suction and discharge valves in the fully closed position using heavy-duty plastic-coated steel wire or chains secured with padlocks. Fasten a durable tag stating: "DANGER: CLOSED VALVE – DO NOT OPERATE – MEN AT WORK."

3. Positive Mechanical Blanking (Double Block & Bleed / Spectacle Blinds)

When working on hazardous media (Heavy Fuel Oil above flashpoint, thermal oil, boiler feed lines above 40 bar, or sea chest connections located below the waterline where single valve failure causes flooding), single valve isolation is considered insufficient by maritime safety codes.

• Double Block and Bleed (DBB): Close two in-line valves in series and open an intermediate bleed/drain valve between them to atmosphere. If the first valve leaks, liquid drains harmlessly through the bleed without pressurizing the isolated pump.
• Spectacle Blinds / Slip Blanks: Install rated steel blanking spades between pipe flanges to physically sever fluid communication between the pipeline and pump casing.

Phase 5: Depressurization, Drainage & Thermal Verification

Before unbolting the pump casing, all trapped kinetic, hydraulic, and thermal energy within the pump body must be systematically dissipated.

1. Position Containment Trays: Ensure the engine room save-all tray beneath the pump is clean and the save-all drain plug is clear. Place clean oil-absorbent pads around the foundation to capture residual drips.
2. Controlled Casing Drainage: Attach a flexible drain hose to the pump casing drain valve leading into a dedicated drain bucket or bilge save-all. Crack open the casing drain valve slowly.
3. Relieve Internal Vacuum: Open the pump casing air vent / purge cock located at the highest point of the volute. This introduces atmospheric air, breaking any internal vacuum and allowing trapped liquid to drain out completely.
4. Pressure Gauge Verification: Verify that suction and discharge pressure gauges on the pump read exactly 0.0 bar gauge.
5. Thermal Stabilization: For pumps handling hot fluids (hot jacket water, thermal oil, boiler feed, or fuel oil), check the casing temperature with an infrared pyrometer. Allow the casing to cool below 40°C before loosening fasteners to eliminate scalding risks.

Phase 6: Safe Flange Cracking & Disassembly Procedure

Even after executing all drainage checks, stubborn valves may weep, or pockets of hot fluid may remain trapped between closed impellers or wear rings. Disassembly must follow strict physical safety methodology.

1. The "Hinge Cracking" Technique

When loosening flange bolts or casing cover nuts:

• Loosen Furthest Fasteners First: Loosen the bolts on the side facing away from your body by 2 to 3 turns.
• Keep Near Fasteners Engaged: Keep the nuts nearest your body loosely threaded onto their studs.
• Gentle Prying: Insert a bronze or copper wedge into the flange gap on the side opposite you to crack the gasket seal. Any residual pressurized fluid or steam will spray downward and away from you, shielded by the pump body itself.

2. Mandatory Personal Protective Equipment (PPE)

• Full face shield combined with safety goggles (impact and chemical splash rated).
• Heavy-duty nitrile chemical gloves (or heat-resistant gloves for hot oil systems).
• Long-sleeved fire-retardant cotton boiler suit buttoned to the wrist and neck.
• Steel toe-cap safety boots with oil-resistant slip-resistant soles.

3. Certified Rigging & Lifting Gear

Pump casings, intermediate brackets, and electric motors can weigh hundreds of kilograms. In accordance with maritime lifting standards (LOLER / Class criteria):

• Use certified chain blocks, beam clamps, and polyester round slings with valid inspection color codes.
• Ensure lifting eye-bolts are screwed fully home into the motor and pump casing lifting lugs before taking the weight.
• Never stand or place limbs directly beneath a suspended motor or pump casing.

Phase 7: Post-Overhaul Recommissioning & Controlled De-Isolation

Re-energizing and recommissioning an overhauled pump requires methodical de-isolation to prevent destructive water hammer, seal blowouts, or electrical short circuits.

1. Housekeeping & Tool Reconciliation: Inspect the pump interior, suction strainer, and adjacent bilge area. Count and account for all tools, rags, and discarded gaskets. Ensure the shaft coupling guard is securely bolted back in place.
2. Motor Insulation Resistance Test (Megger): Before re-energizing, test the motor stator windings using a 500V DC insulation tester (Megger). Verify phase-to-phase and phase-to-earth resistance exceeds 1.0 MΩ (healthy modern marine motors typically read >100 MΩ).
3. Remove Lockout/Tagout Hardware: The engineer who placed the locks personally removes padlocks and warning tags from the local panel, MCC, and ECR console. Reinsert auxiliary control fuses and rack in the circuit breaker.
4. Controlled Priming & Venting (Preventing Water Hammer):
   • Ensure the casing drain cock is tightly shut.
   • Keep the pump discharge valve fully closed.
   • Open the casing air vent cock.
   • Crack open the suction valve slowly (10% to 20%). Allow liquid to flood the casing gently, pushing out all trapped air through the vent cock.
   • When a solid, bubble-free stream of fluid issues from the vent, shut the vent cock tightly. Then fully open the suction valve. This step prevents devastating water hammer shock waves and vapor cavitation.
5. Bump Test for Rotation: Momentarily jog the motor start button for 1 second to confirm the motor turns in the correct direction (matching the rotational arrow stamped on the pump volute).
6. Operational Trial Run & Parameter Check:
   • Start the pump with the discharge valve cracked open, then open the discharge valve smoothly to system pressure.
   • Verify motor running current (Amperes) on the switchboard ammeter; confirm it is well within the motor nameplate Full Load Current (FLC).
   • Inspect mechanical seal faces or stuffing box packing. A mechanical seal must show zero leakage; gland packing should exhibit a small, regular cooling weep (approximately 10 to 20 drops per minute).
   • Monitor bearing temperatures using an infrared thermometer and listen for abnormal bearing noise or cavitation rumble over a 30-minute test run.
7. Permit Sign-Off & Handover: Restore the pump to "AUTO / STANDBY" on the PMS console. The Second Engineer signs off and closes the Permit to Work and Electrical Isolation Certificate, and returns formal custody to the Chief Engineer and watchkeeping team.

Engine Room Pump Isolation Matrix (Quick Reference)
